SPECIFICATIONS

Applicable Voltage: 5V-12V 2A

Brand Name: Heyman

Certification: None

Compatible Brand: Universal

Display Size: 10.1 Inch

Driver Board Length*Width: 90mm*66mm

Hign-concerned Chemical: None

Origin: Mainland China

Power Supply Interface: DC5.5mm

Product Type: Panel LCD Combo

Screen Length*Width*Thickness: 235mm*143mm*3mm

Screen Resolution: 1024x600

Screen Scale: 16:9

Screen Type: TFT

Signal Mode: HDMI,VGA,AV1,AV2

This is a multi-purpose portable display device with a 10.1-inch 1024*600 high-definition display. Support HDMI/VGA/AV1/AV2 4 signal modes. It can be used to connect computer and computer secondary screen, Raspberry Pi,Banana Pi,Orange Pi,Development Board,TV box,game console, etc...... Most of the devices that support HDMI/VGA/AV signal. The DC5.5mm power supply interface can support 5V to 12V power supply.

We provide different options, please choose according to your needs (please refer to the photos corresponding to the selected options)If you have any questions about the options, please contact me before making a purchase. Thank you

If you want to buy related accessories, please click the text link below to buy, thank you!

LCD Screen Display Extension Cable

HDMI-Compatible Connecting Line

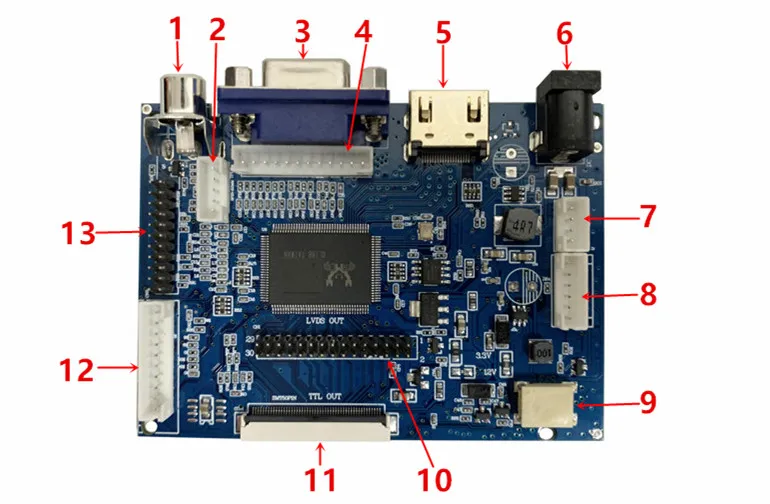

Interface introduction:

1--AV1 Interface

2--AV1,AV2 Interface

3--VGA Interface

4--VGA Extension Interface

5--HDMI High-Definition Interface

6--DC5.5mm Power Interface

7--Power Extension Interface

8--High Voltage Board Power Supply

9--LED Display Backlight Power Supply
10--Lvds Display Interface

11--50Pin TTL Display Interface

12--Button Board Interface

13--Resolution Adjustment Shorting Block

Package Content:

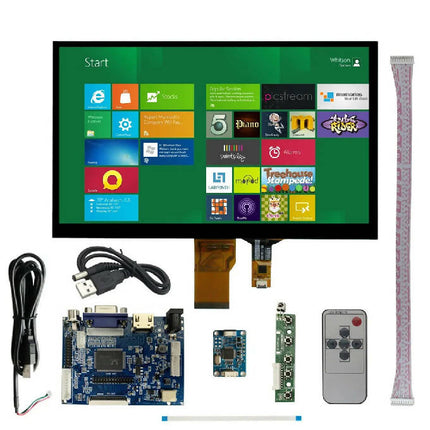

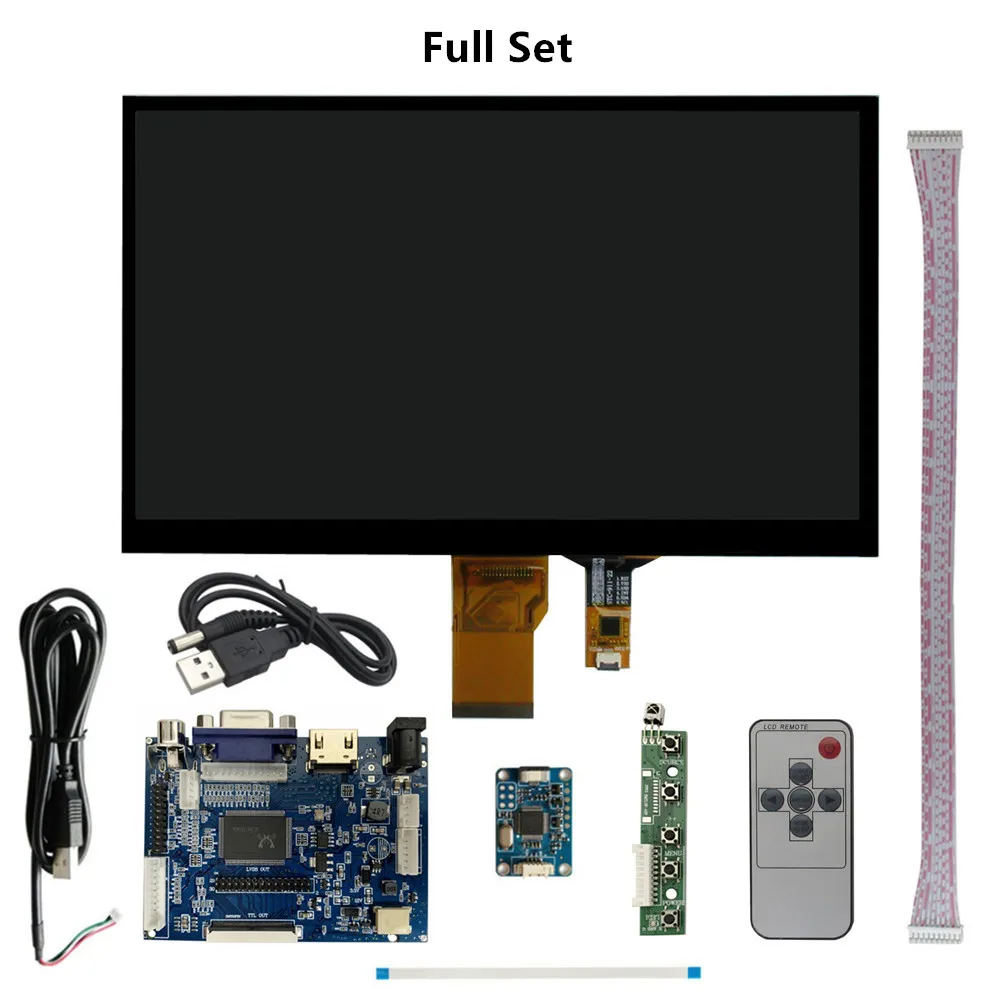

Full Set：

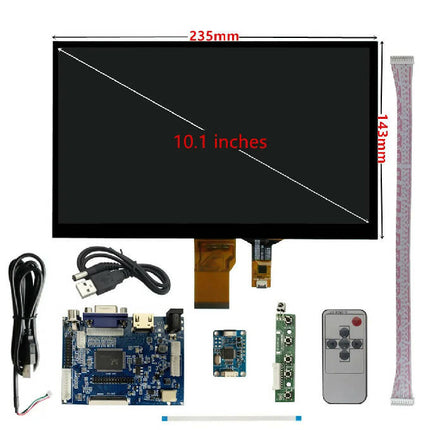

• • 10.1Inch 1024*600 LCD Display Screen

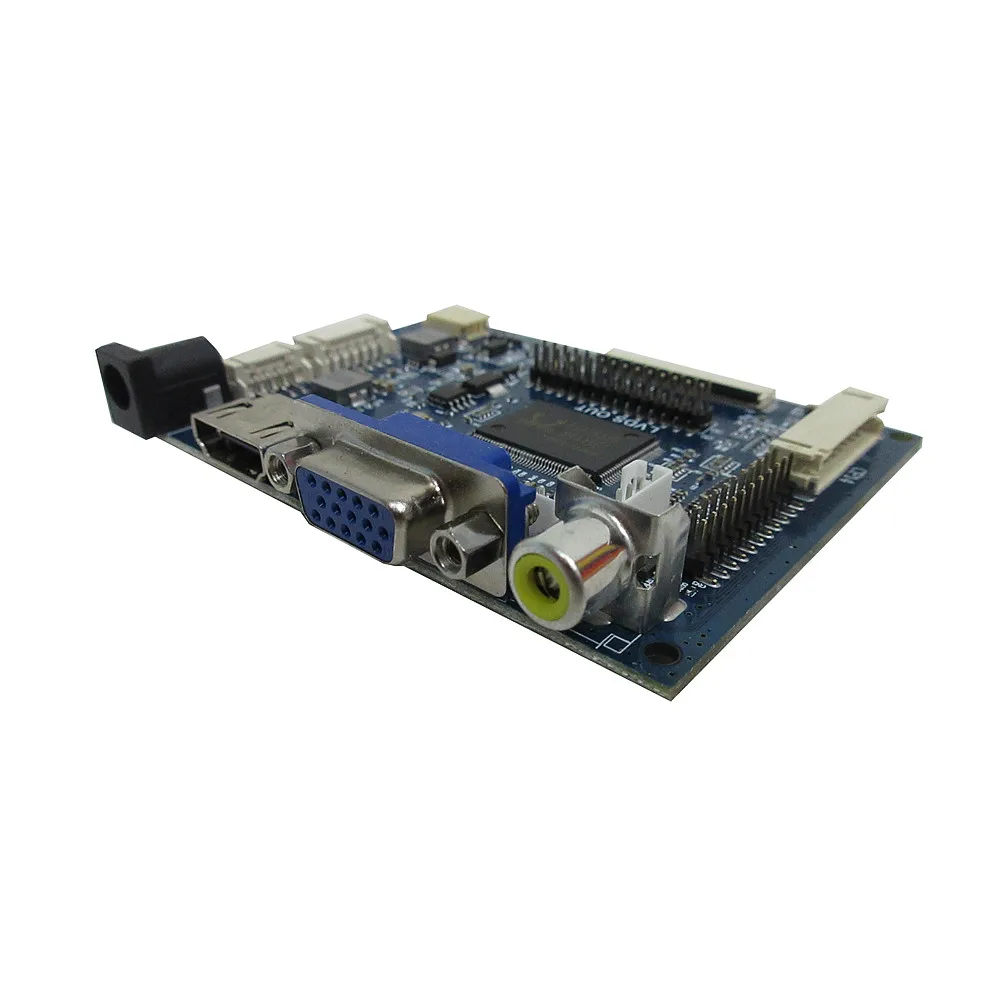

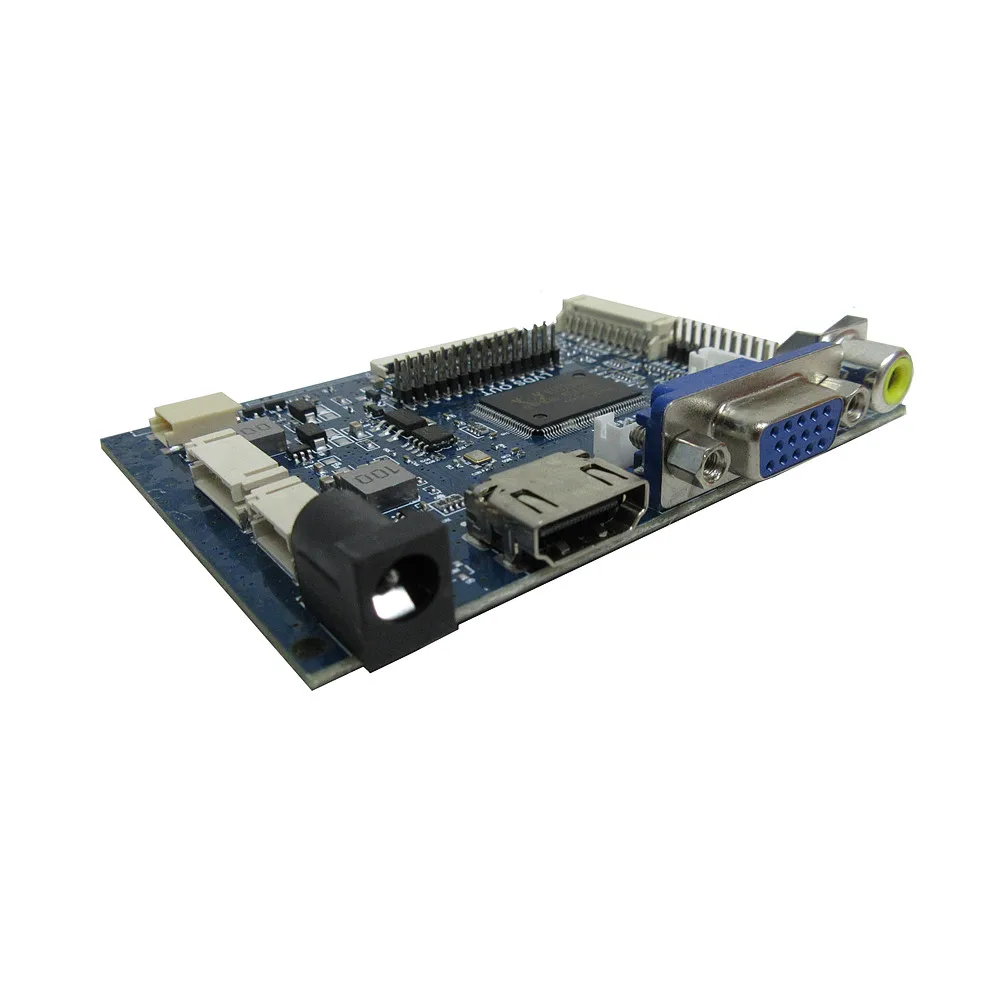

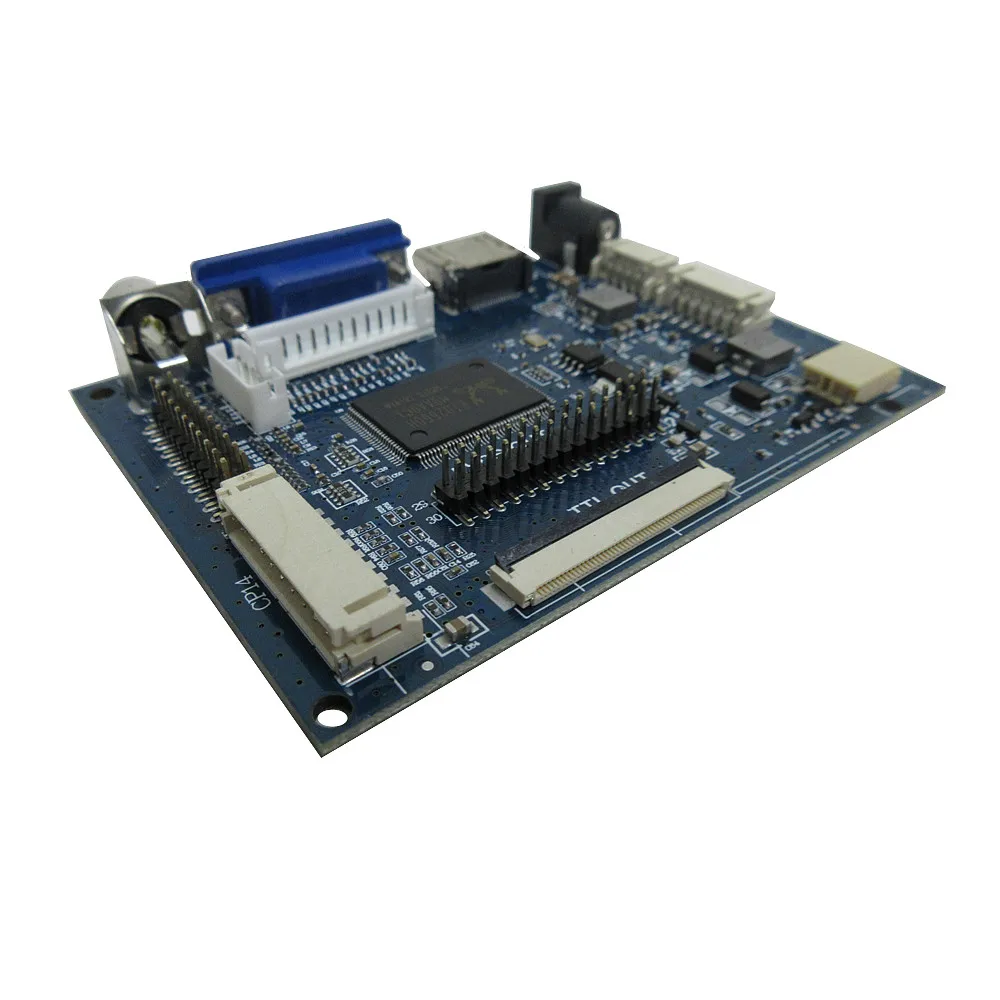

• LCD Display Screen Driver Control Board

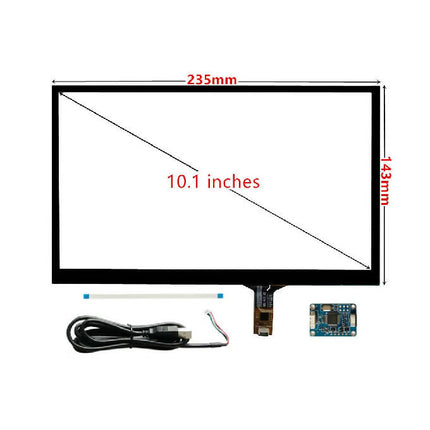

• 10.1 Inch Capacitive Touch Screen

• Touch Screen Converter

• USB Power Cable

• USB Touch Screen Connecting Cable

• Remote Control

• Key board

• Key board connection Line

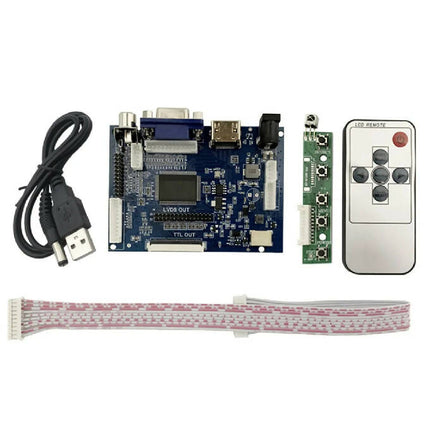

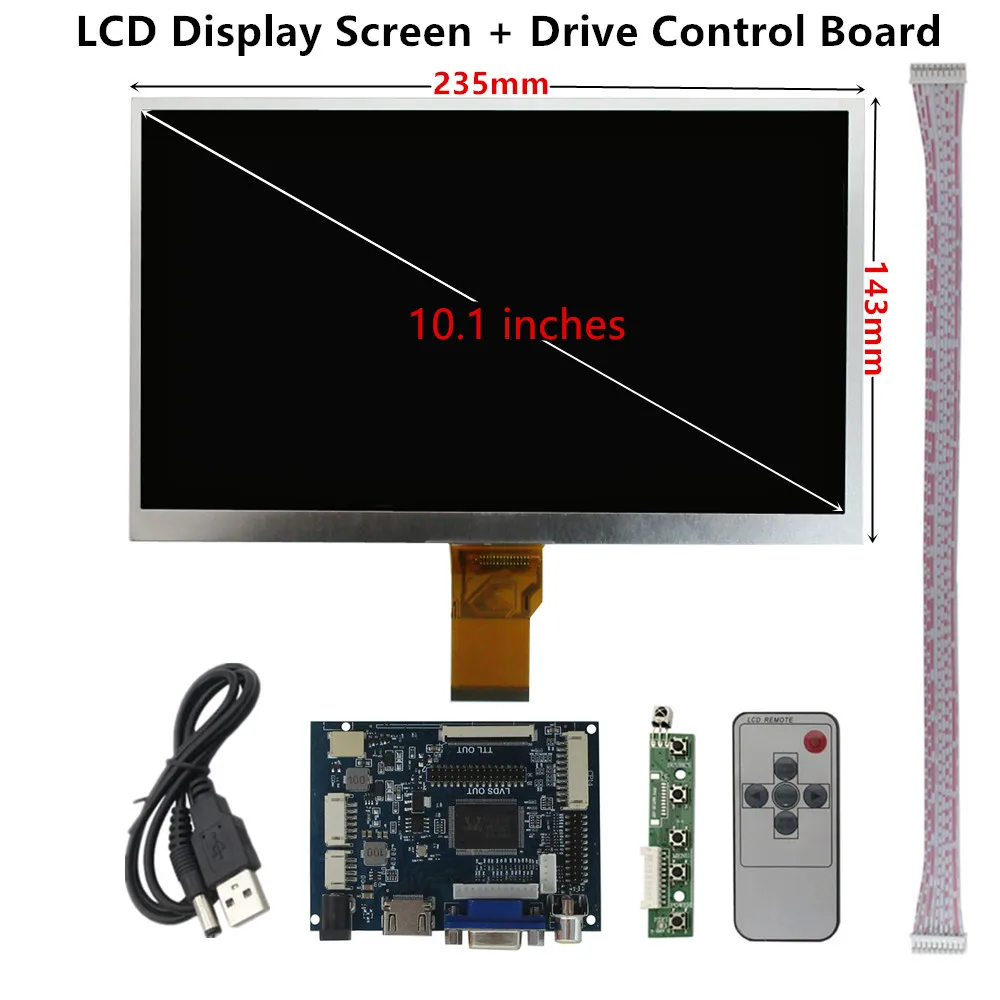

LCD and Driver Board：

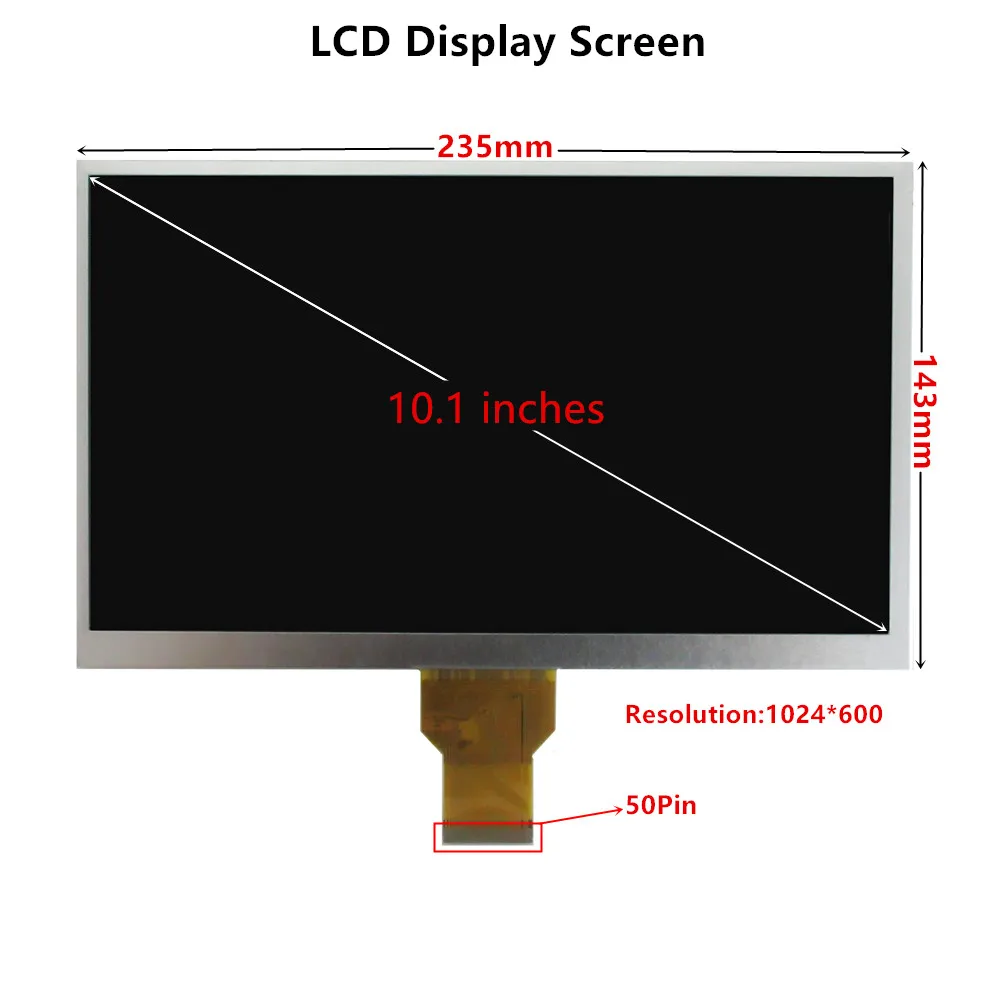

• 10.1 Inch 1024*600 LCD Display Screen

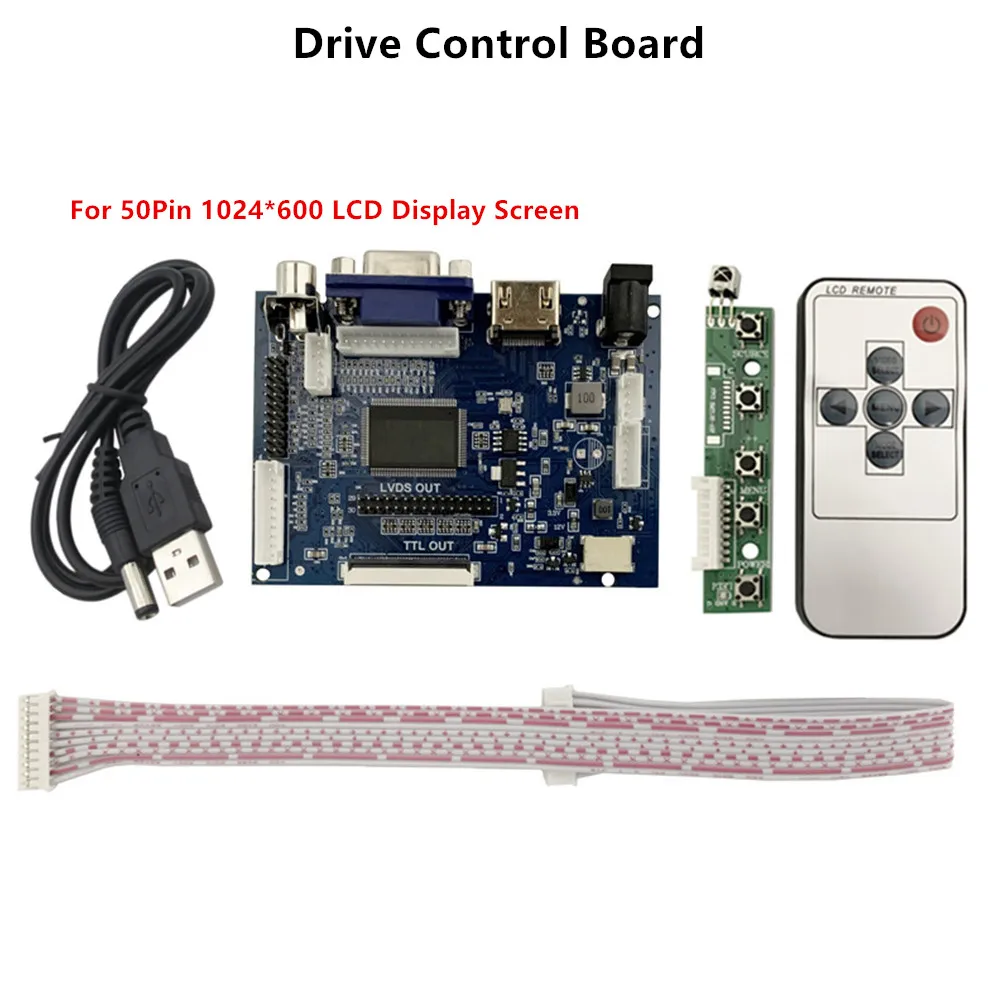

• LCD Display Screen Driver Control Board

• USB Power Cable

• • Remote Control

  • Key Board

  • Key Board Connection Line
